Description

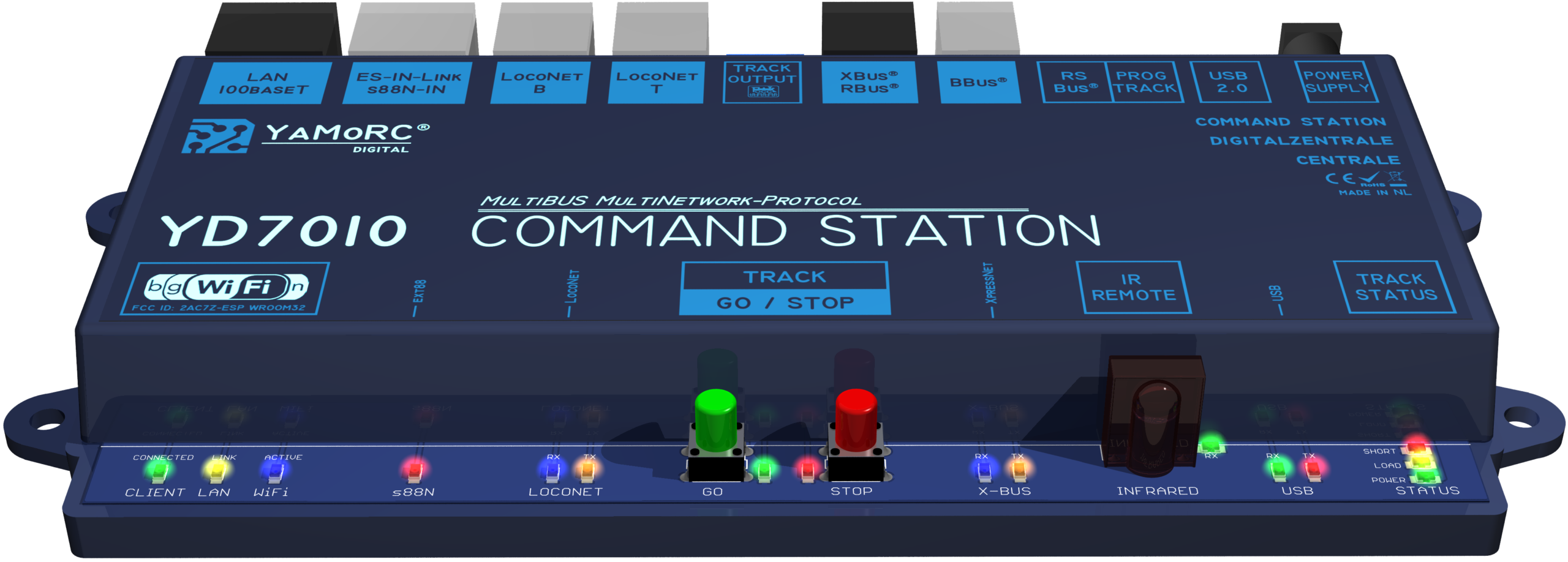

YaMoRC YD7010 DCC Command Station

A summary of the presented features:

Unique DCC signal generator:

With priority control and interleaved packet generation.
Changes sent  by any interface are directly being reflected to the track.
Generates RailCom Cut-Out.
3 A integrated Booster
Operating voltage range from  15 – 19 VDC. Giving a track-voltage of 13.8 – 17.8 Volts. That means safe for your N-scale equipment and powerful for H0.

Multiple Model Railroad compatible Interface Busses:

LocoNet, the world standard set by Digitrax Inc.
XpressNet, from the inventor of DCC: Lenz
Good old S88 signalling, fully compatible with ES-IN-Link by use of our YD6902-EXT adapters.
USB interface for three virtual COM-ports:
YD.Command
LocoNet
XpressNet
The USB connection can also be used to update the YD7010`s firmware

Full network capabilities:

WiFi Access Point, gives direct access to smartphones, tablets and handheld controllers
100baseT RJ45 wired network socket, connect and bind to your home network and reliably connect your PC software
By means of the built in YD9401 Module which provides:
6 different but SIMULTANEOUS usable network protocols on WiFi and LAN:

XpressNet-LAN,
Z21®,
LocoNet Binary,
LocoNet LBServer,
JMRI: WiThrottle
YD.Command
Booster Interface by LocoNet-B with strong, 800mA LocoNet RailSync signals
Handcontroller, feedback modules etc. interface by LocoNet-T with strong, 800mA 12VDC power supply
Powerful 1 Amp XpressNet supply
Roco R-BUS compatible feedbacks on XpressNet socket
Roco B-BUS for compatible boosters on RJ10 socket
Lenz RS-BUS compatible feedbacks
Infra-Red sensor for the use of IR-based remote controllers like the Uhlenbrock IRIS or the Piko DigiFern
Clear LED indicators

Programming:

POM write
Service Mode ( programming track )
ES-Link  capable modules like YD8044, YD8008, YD8116, YD6016ES, YD7403

Additional extra purchasable , quality made YaMoRC spec,  switch mode power supply with choice of:

15V fixed / 4 A
18V fixed / 3.4A
