Description

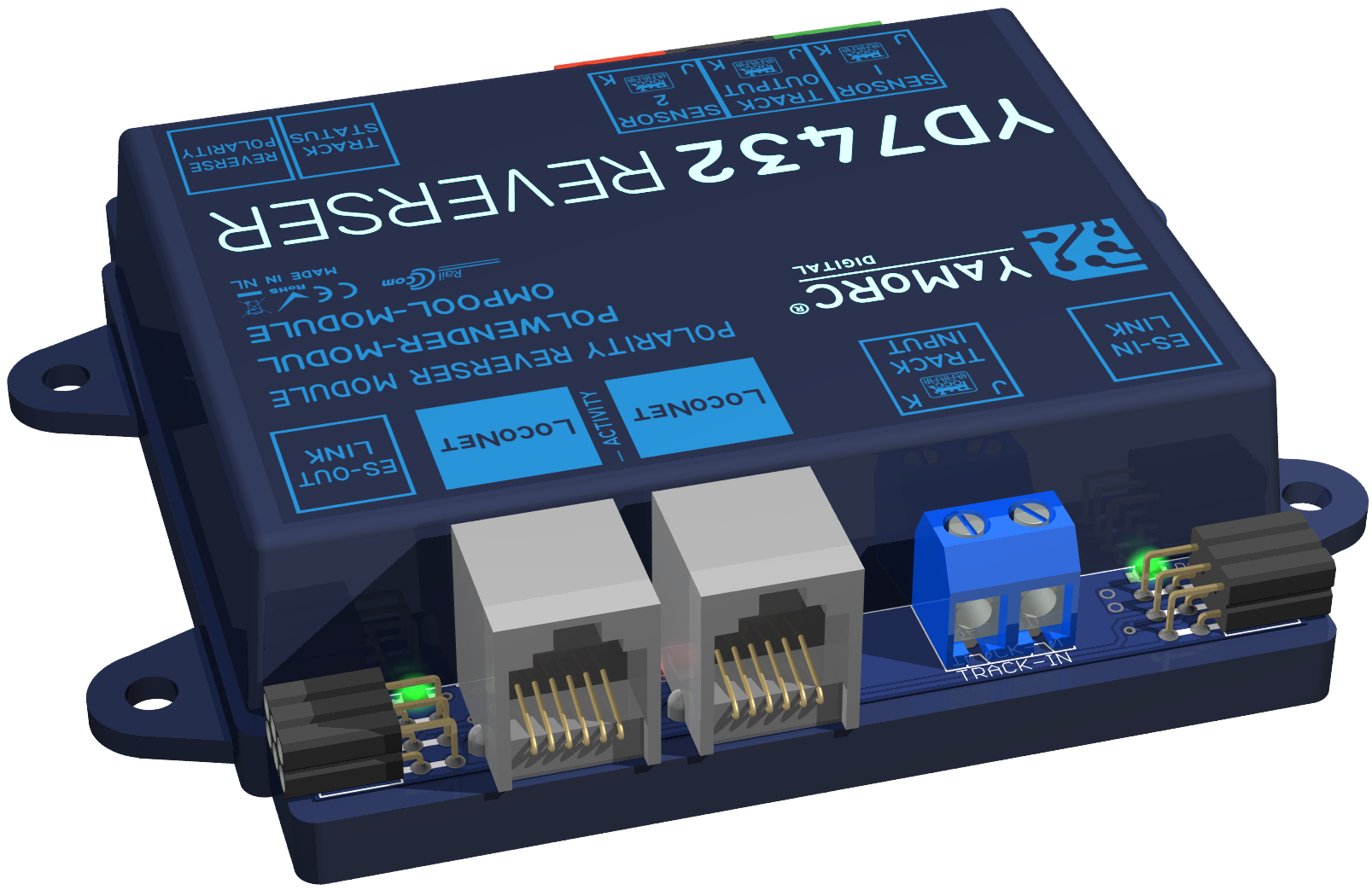

YaMoRC YD7432 Reverse Loop Including Railcom Detection
Features Include .

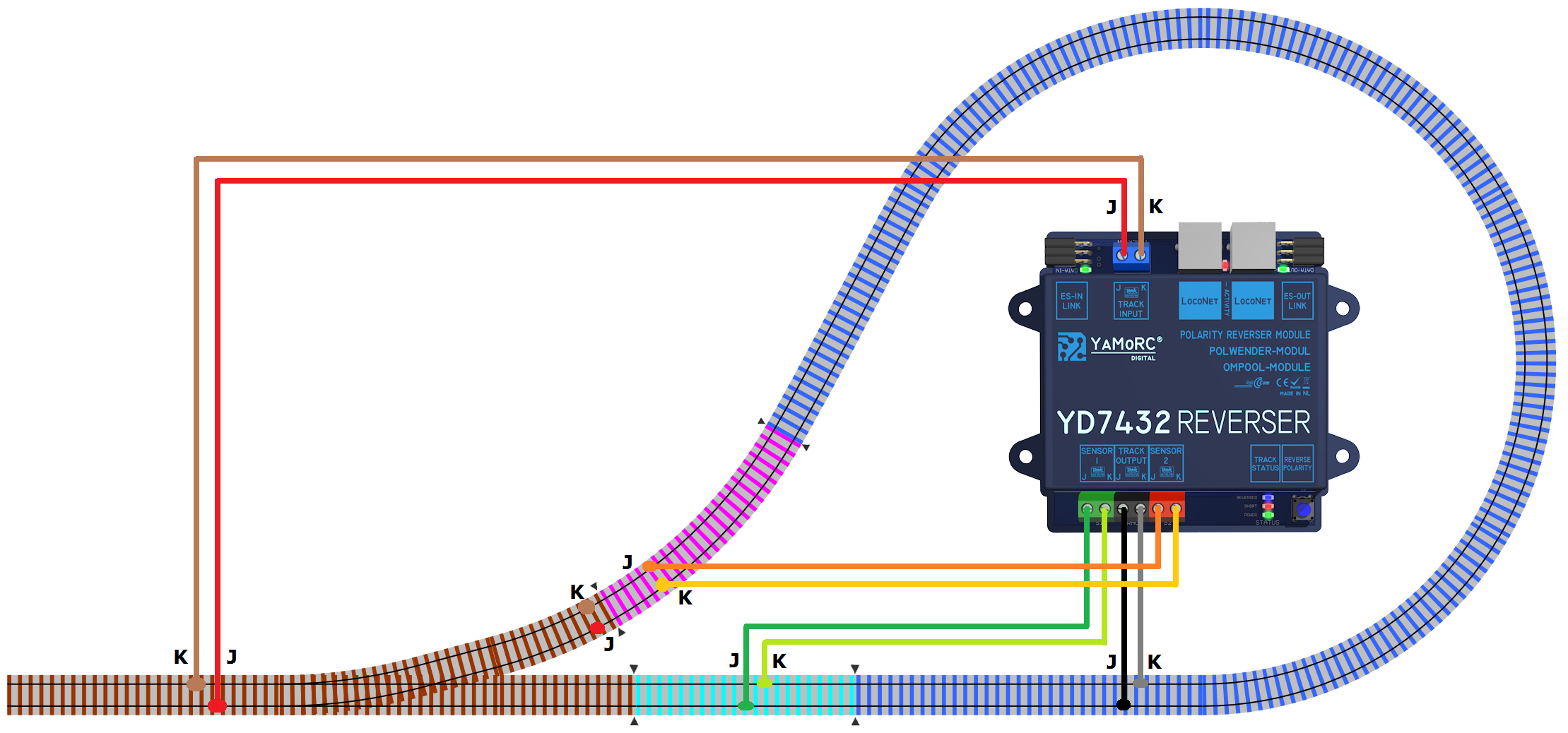

- 2-sensor short-circuit free operation.
- alternative short-circuit detection mode
- follow polarity with external (LocoNet) occupation feedback
- follow polarity with turnout at entry
- via LocoNet
- via DCC
- set turnout at exit
- 100% solid-state, no relays
- RailCom Block-, Address and Rail-Direction Report
- LocoNet occupation of S1, Track and S2 feedback, as well as short circuit status and track-polarity
- ES-Link occupation of S1, Track and S2 feedback, as well as short circuit status and track-polarity

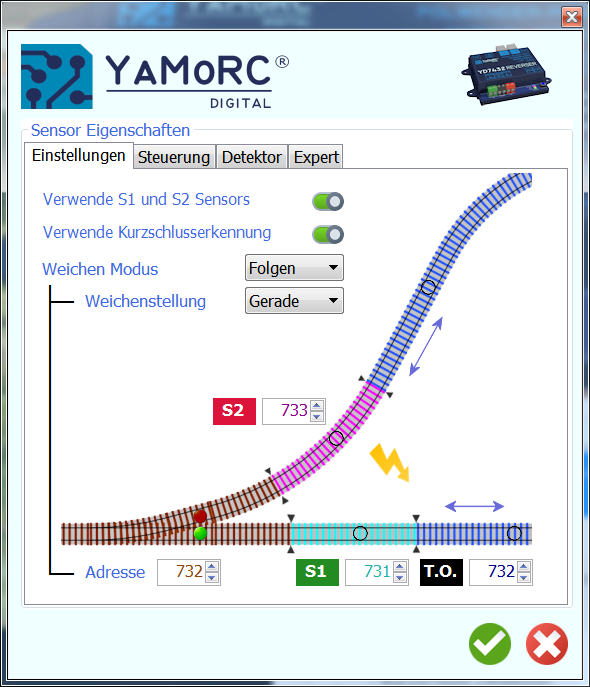

- ES-Link configuration
- Firmware updatable
- Current Ratings:
- 2A - Continuous Operation
- 2.5-2.75A Short Circuit Detection treshold. For reversing as well as short circuit shurdown.
- 3.5A - Maximum Current during maximum 5 Seconds ( Command Station/Booster should switch off in this time )
